Scalpel blade holder handle

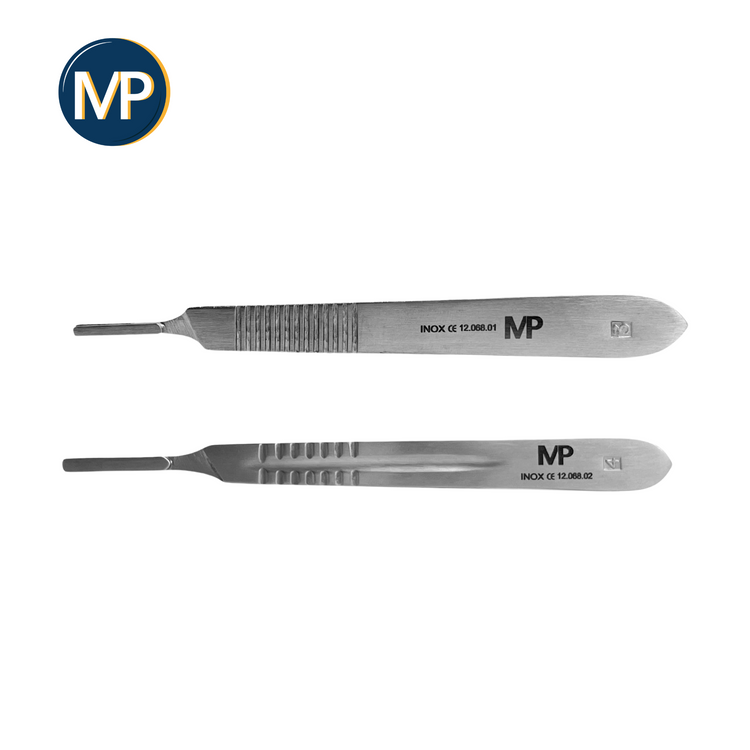

Offering excellent grip and intuitive blade assembly and disassembly , this scalpel handle is available in two models:

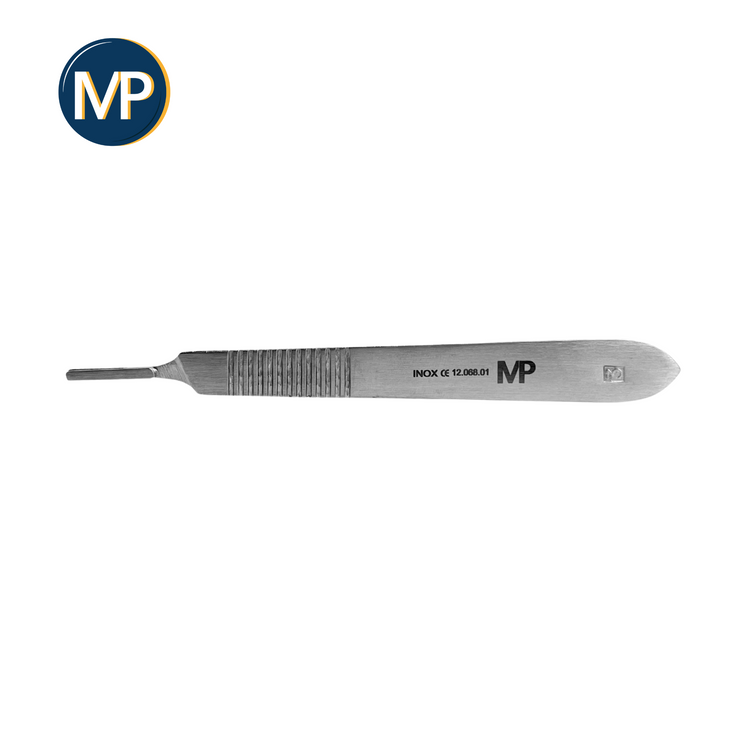

Handle #3 is compatible with sterile scalpel blades #6, 9, 10, 11, 11P, E11, 12, 12D, 13, 14, 15, 15A, 15C, 15T, 16, 40

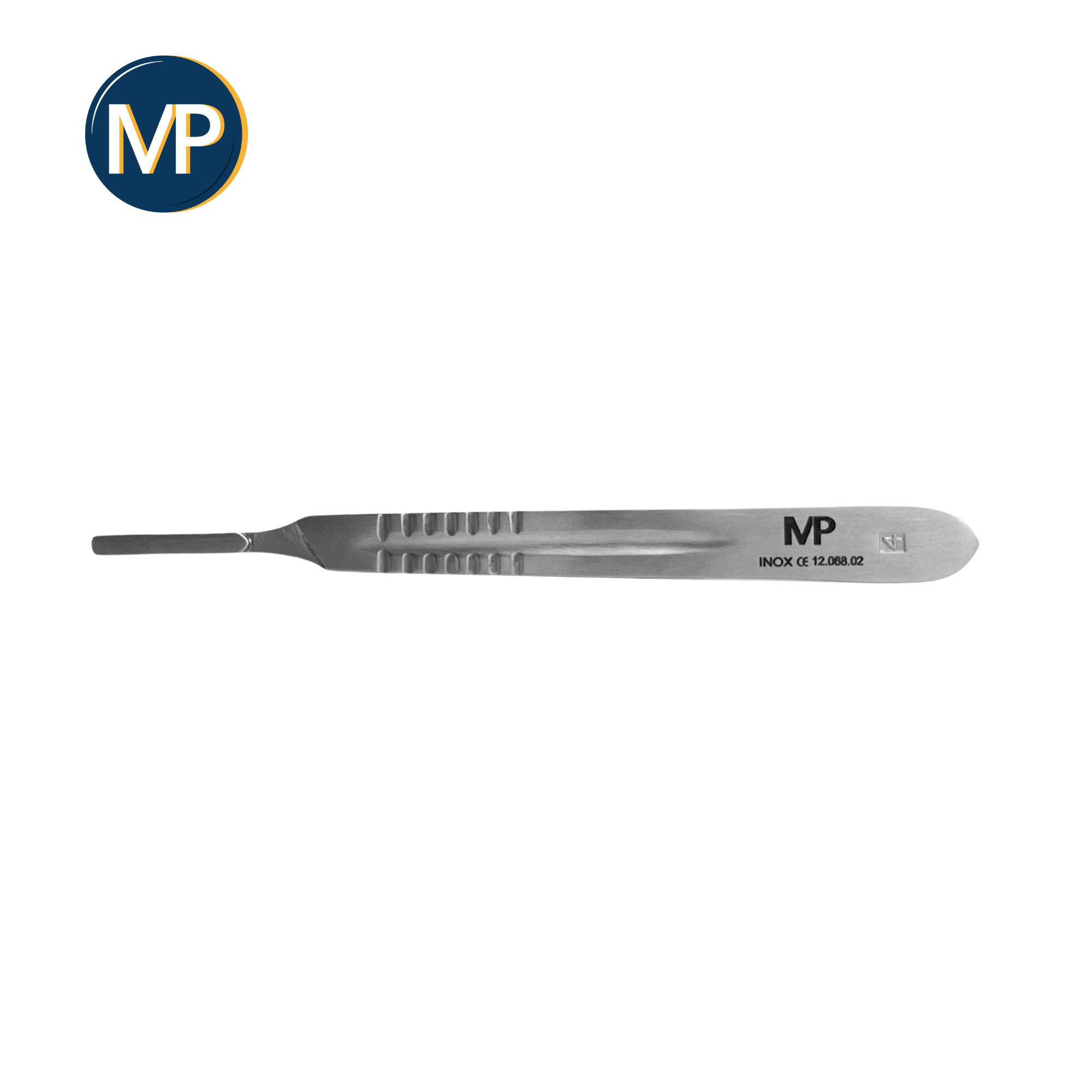

Handle #4 is compatible with sterile scalpel blades #18, 19, 20, 21, 22, 22A, 23, 24, 25, 25A, 26, 27, 36.

TIPS FOR MOUNTING AND DISMOUNTING BLADES

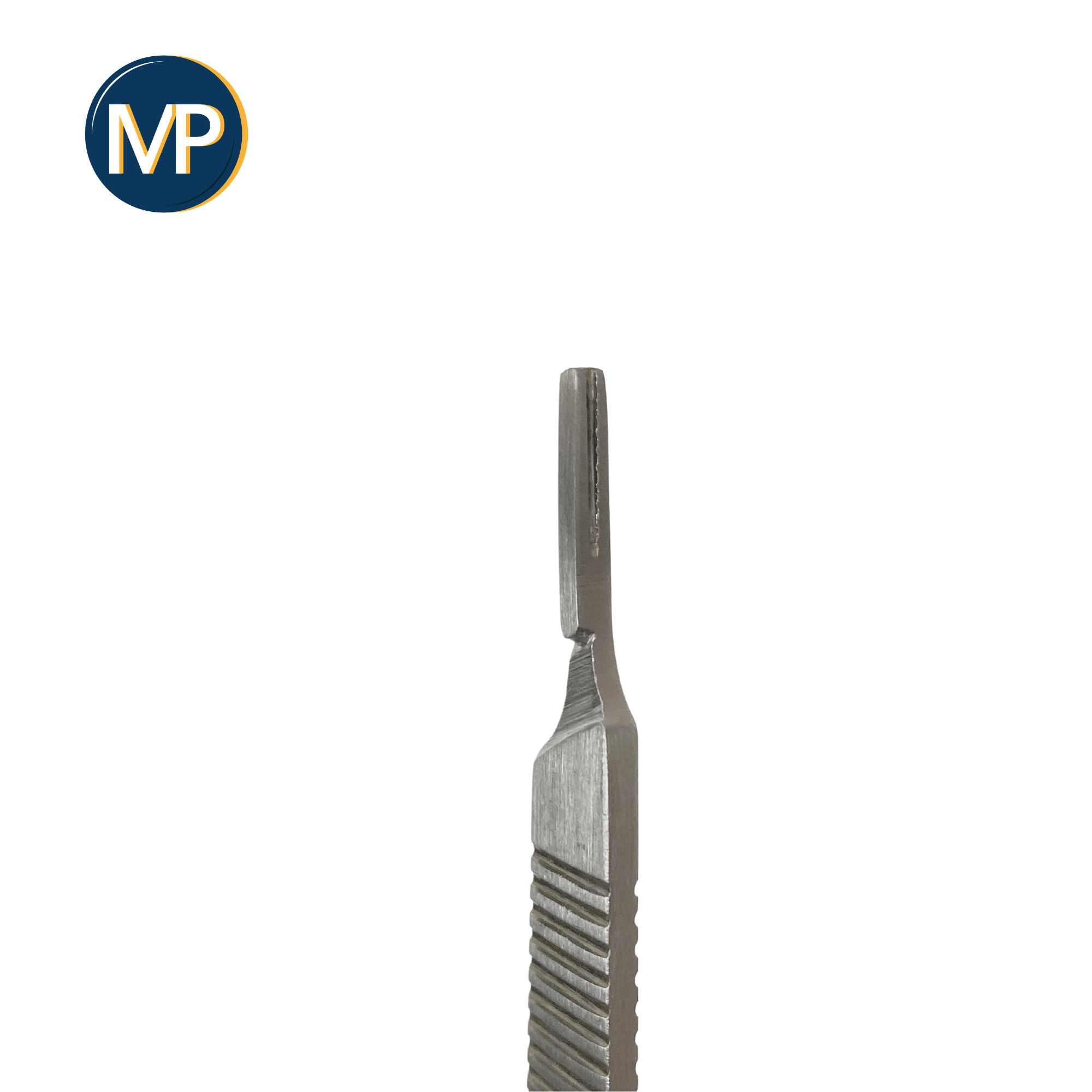

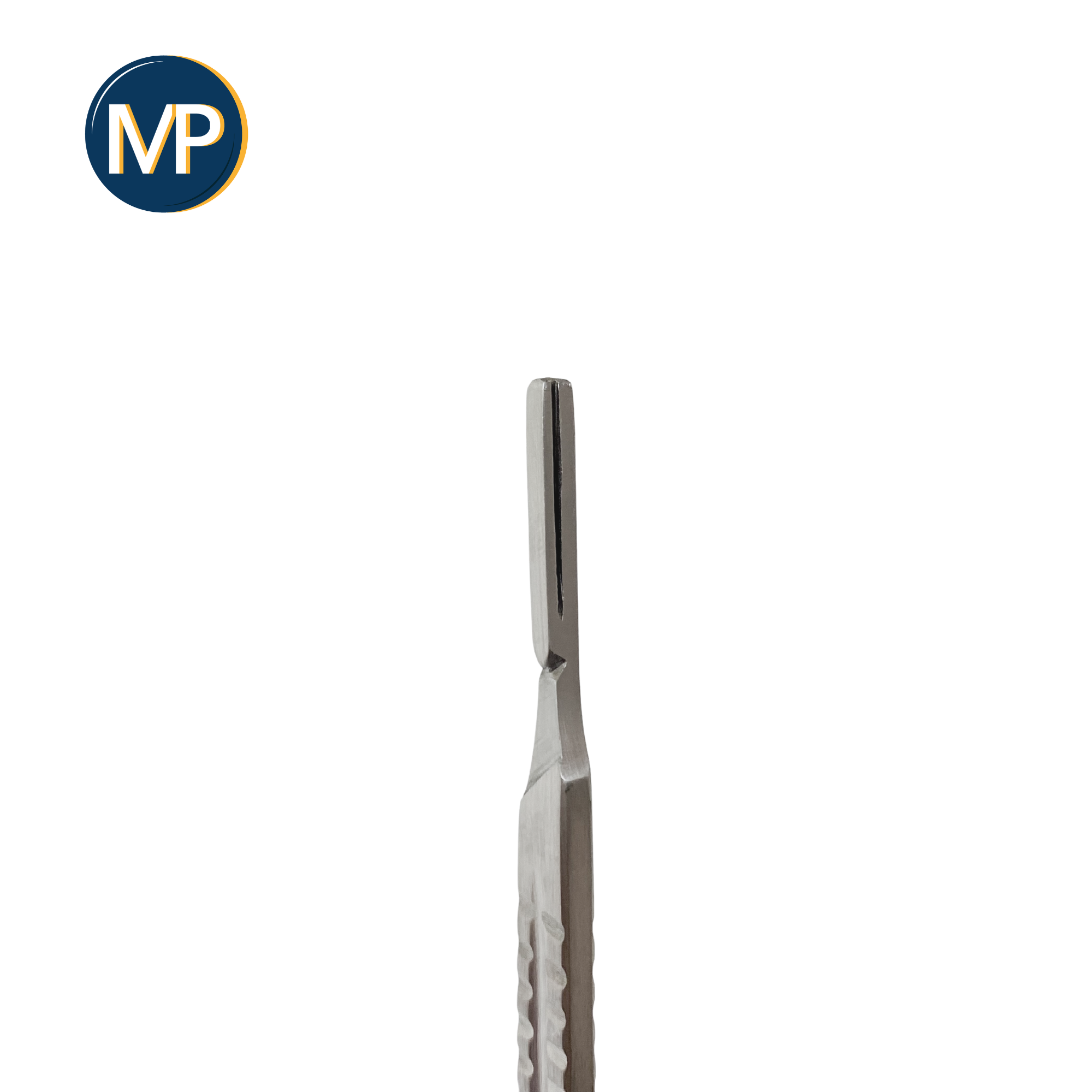

To attach a standard blade to a wide or narrow tip handle:

• grasp the blade with pliers or similar instrument, avoiding contact with the cutting edge.

• hold the handle with the other hand with the mount facing up.

• position the blade opening over the handle tip and engage the grooves.

• slide the blade until it clicks into position.

• To make assembly easier, bend (twist downward) the blade slightly as you slide it onto the handle.

To remove the blade:

• grasp the blade with pliers or other similar instrument.

• lift the base of the blade with the tip of your index finger, avoiding contact with the cutting edge, and carefully remove it from the handle.

Technical characteristics:
- Stainless steel
- Autoclavable (prion cycle)
